How to Generate a 3D Model from an Image (2026)

Most image-to-3D tutorials read like a feature page: upload, wait, download, done. That skips the parts that actually decide whether your mesh is usable, namely which engine you pick, how you prep the input, and what you do when the back of the model comes out wrong.

This is the workflow we run at Trify3D. I work on the reconstruction pipeline and run image-to-3D across game props, product shots, and organic subjects daily. The timings and triangle counts below come from our own test runs (the runtime field in our config), not vendor landing pages. Where I don't have hard numbers yet (mainly head-to-head accuracy benchmarks across engines), I say so explicitly rather than guessing. Last updated 2026-07-03.

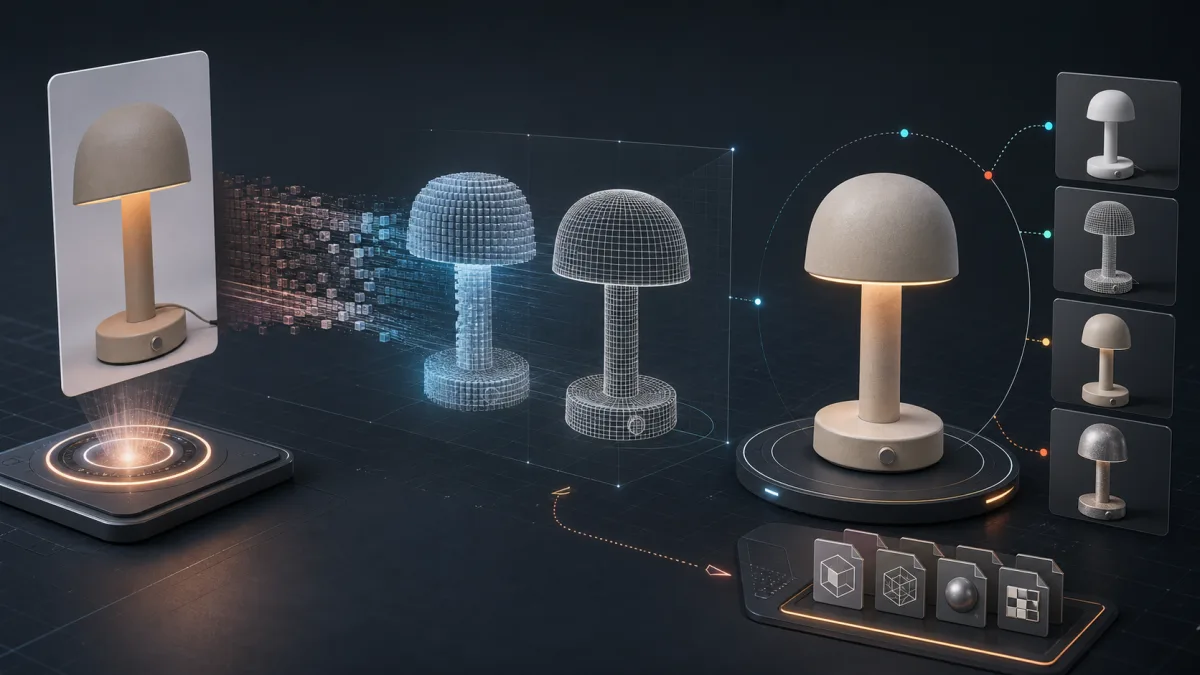

What image-to-3D actually does

Single-view reconstruction takes one image and predicts a full 3D mesh plus textures, including the parts you can't see. The unseen back is hallucinated from the model's training distribution. It's an informed guess, not a measurement.

This matters because it sets the ceiling. Image-to-3D is excellent for:

• Concept iteration: go from a sketch or photo to a turntable in under a minute
• Game and prop assets: anything where the back is rarely seen or where you'll retopo anyway
• Reference and blocking: getting a rough volume into a scene fast

It's weaker for:

• Delivery-grade hard-surface parts with precise dimensions (use photogrammetry or CAD)
• Anything where the unseen geometry must be correct (engineering, medical)

If you've come from a more general intro, the how to make a 3D model overview compares AI against CAD, sculpting, and scanning. This page goes deep on the AI image path only.

Step 1: Prep the input image

Input quality dominates output quality more than engine choice does. I've seen a great engine produce garbage from a bad photo and a mediocre engine produce something usable from a clean one.

What works:

• Single clear subject. One object, centered, not cropped at the edges.
• Plain background. Doesn't have to be white; a consistent uncluttered backdrop is what matters. Busy backgrounds bleed into the mesh.
• Even, diffuse lighting. Harsh shadows get baked into the geometry as fake surface detail. Soft studio light or overcast outdoor light is ideal.
• Front or three-quarter view. Straight side profiles lose depth cues; dead-front loses silhouette. Three-quarter is the sweet spot.
• Decent resolution. 1024px on the long edge is a reasonable floor. Don't upscale a 200px thumbnail.

A quick prep habit I picked up the hard way: I once fed a backlit small object into reconstruction and the resulting mesh surface was covered in pits. The narrow dynamic range meant the engine couldn't tell material from shadow. Now I always pull the image into Photopea first, check Levels to confirm highlights aren't blown out and shadows aren't crushed, and only then upload. Success rate climbed noticeably after that.

Step 2: Pick the engine (this is the big decision)

Here's the part most guides skip: there is no single best image-to-3D engine. Different engines have different strengths, and on Trify3D we expose several precisely so you can compare rather than trust one.

Across the inputs I've run, the pattern is roughly:

• Hard-surface props (weapons, vehicles, mechanical parts); some engines produce cleaner edge loops and fewer floating artifacts.
• Organic subjects (creatures, characters, foliage); different engines win, usually the ones trained on more organic data.
• 3D-printable parts: yet another engine tends to produce more manifold geometry that slices without repair.

I'm deliberately not naming specific winners here because a honest, controlled benchmark across a fixed asset set is something we haven't published yet (to be benchmarked). What I can say with confidence: when the same input is run through multiple engines, the outputs differ enough that blind preference picks cluster by asset type, not by a single global winner. That's the entire reason the multi-model 3D generator exists: run the same image through several engines from one credit pool, then pick.

If you only need a quick preview and don't care about optimising, any engine is fine. If the asset matters (it's going into a shipped scene or a client deliverable), running two or three engines and comparing is worth the extra credits.

Step 3: Generate and review

Upload, run, and within roughly 20-90 seconds you get a preview mesh you can orbit. Observed ranges from our test runs:

• Simple prop, clean background: ~20-30s to first preview
• Character or organic subject: ~40-60s
• Complex multi-view reconstruction (dense detail, fur): up to ~90s

These are typical ranges, not promises. Load and queue state vary.

What to check in the preview:

1. Silhouette from all angles. Front looks great, but orbit to the back. That's where hallucination shows. If the back is a smooth blob where it should have detail, you may need a second reference angle or a different engine.
2. Floating artifacts. Stray geometry near the silhouette usually means the background wasn't separated cleanly. Re-prep the input.
3. Texture projection. Does the texture sit correctly when orbited, or does it swim? Swimming means the UV reprojection is loose, fixable in Blender, but annoying.
4. Triangle count. Check it's in a usable range for your target. We've seen outputs land anywhere from ~12k to ~180k tris depending on engine and input. Know what your scene can take.

If the first run is bad, change one variable at a time. Input prep first, then engine, then view angle. Changing all three at once teaches you nothing.

Step 4: Clean up (the part tutorials understate)

Raw image-to-3D output is a starting point, not a final asset. For anything beyond a prop in the background, expect to:

• Repair non-manifold geometry: Blender's cleanup tools or Meshmixer handle most of it
• Retopologise if you need clean edge loops for animation
• Reproject textures if the auto-UV swam
• Decimate to hit your poly budget

A reasonable budget: simple props are often usable as-is. Anything character-facing or close-to-camera usually needs 10-30 minutes of cleanup. This is normal and not a sign the engine failed. It's the nature of single-view reconstruction.

Step 5: Export

Once the mesh is clean, export to the format your downstream tool expects. GLB for web and real-time, glTF for DCC interchange, STL for printing, OBJ as a universal fallback. Trify3D's studio exports those four natively; if you need FBX or USDZ, export GLB and convert via Blender. The format decision and its pitfalls (Draco compression, coordinate handedness, texture embedding) are covered in detail in the export guide . I won't repeat the table here.

The short version: pick by downstream tool, not by file size. A GLB that loads cleanly in three.js beats a smaller file that breaks materials.

When image-to-3D is the wrong tool

Honesty check: image-to-3D is not always the answer:

• You need exact dimensions. Reconstruction scales are approximate. Use photogrammetry (20-200 photos) or CAD.
• The back must be correct. Single-view hallucinates it. Multi-view helps but still isn't measurement.
• The subject is transparent, reflective, or uniform. Glass, mirrors, and featureless surfaces reconstruct poorly. There's nothing for the engine to lock onto.
• You have one low-quality photo. No engine rescues a 200px Motion-Blurred shot.

One workflow note

If you're going to run the same image through more than one engine to compare (and for anything you'll actually ship, you should), doing it from one place with a shared credit pool beats juggling three separate accounts. That's the image to 3D model entry point, and the multi-model comparison is the part I'd reach for first on a deliverable-grade asset. For a throwaway concept prop, one engine is plenty.
